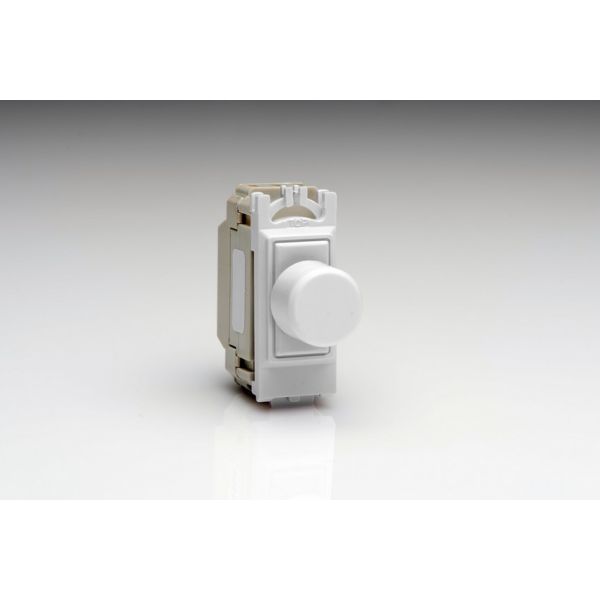

GPINTW Varilight Non-dimming Intermediate (3 Way) Dummy White PowerGrid Module Up To 1000 Watt for Varilight PowerGrid plates (1 Grid Space)
#GPINTW
GTIN: 5021575966657
£12.36
£10.30
GPINTW Varilight Non-dimming Intermediate (3 Way) Dummy White PowerGrid Module Up To 1000 Watt White Dimmer Knob, Fascia and Trim
✔ This is NON-DIMMING, and works like a rocker switch, Push On/Off
✔ Suitable for 3 way circuits
✔ Max Load 1000 Watt for any type or amount of bulbs or lamps
✔ Min Load 0 Watt
✔ Looks like a dimmer but on/off function only, place with other dimmers to compliment your lighting set up
✔ Create your own Power Grid combinations
✔ This is NON-DIMMING, and works like a rocker switch, Push On/Off
✔ Suitable for 3 way circuits
✔ Max Load 1000 Watt for any type or amount of bulbs or lamps
✔ Min Load 0 Watt
✔ Looks like a dimmer but on/off function only, place with other dimmers to compliment your lighting set up
✔ Create your own Power Grid combinations
Availability:
In stock
SKU
GPINTW
Varilight Non-dimming Intermediate (3 Way) Dummy PowerGrid Module Up To 1000 Watt for Varilight PowerGrid plates (1 Grid Space)
..................................................
VARILIGHT Dimmer PowerGrid Modules have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The VARILIGHT Dummy Series, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct dimmer switch for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
This Intermediate PowerGrid Module 'Dummy' is push on/off, meaning to turn the dimmer on or off simply push the spindle in and it will click back out.
..................................................
This intermediate dummy dimmer is a non-dimming solution for products, add this Module to any PowerGrid plate to create a non-dimming 3 Way/Intermediate solution for products that can't be dimmed, on the same plate as dimming or other non-dimming modules.
..................................................
The beauty of this Dummy Series is that it is identical in appearance to a dimmer switch but without the dimming function, so when attaching to a plate with other dimmers, it doesn't look out of place.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
- Compatibility Detailed PDF
- Compatibility Overview PDF
..................................................
VARILIGHT Dimmer PowerGrid Modules have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The VARILIGHT Dummy Series, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct dimmer switch for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
This Intermediate PowerGrid Module 'Dummy' is push on/off, meaning to turn the dimmer on or off simply push the spindle in and it will click back out.
..................................................
This intermediate dummy dimmer is a non-dimming solution for products, add this Module to any PowerGrid plate to create a non-dimming 3 Way/Intermediate solution for products that can't be dimmed, on the same plate as dimming or other non-dimming modules.
..................................................
The beauty of this Dummy Series is that it is identical in appearance to a dimmer switch but without the dimming function, so when attaching to a plate with other dimmers, it doesn't look out of place.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
- Compatibility Detailed PDF
- Compatibility Overview PDF
| Product Filters | Intermediate |
|---|---|
| PowerGrid Switch Type | Dummy Dimmers |
| PowerGrid Dimmer Type | Dummy Dimmers |
| POWERGRID INSERT COLOUR | White |
Write Your Own Review
Product Features
✔ This is NON-DIMMING, and works like a rocker switch, Push On/Off
✔ Suitable for 3 way circuits
✔ Max Load 1000 Watt for any type or amount of bulbs or lamps
✔ Min Load 0 Watt
✔ Looks like a dimmer but on/off function only, place with other dimmers to compliment your lighting set up
✔ Create your own Power Grid combinations
..................................................
Range: Power Grid
Finish: White
Product Category: Push on/off Intermediate Dummy
Insert/Knob Colour: White Knob
Dimensions: 54x28x50mm
Product Weight: 28g
Fixing Centres: N/A
Recommended Back Box Depth: 35mm
Operating Voltage: 220/250V AC
Maximum Load Rating: 6A
Maximum Current Rating: 6A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter:N/A; Capacity: 3 x 1.5mm²
..................................................
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: No dimming function.
Applicable Safety Standard: BS EN 60669-1
