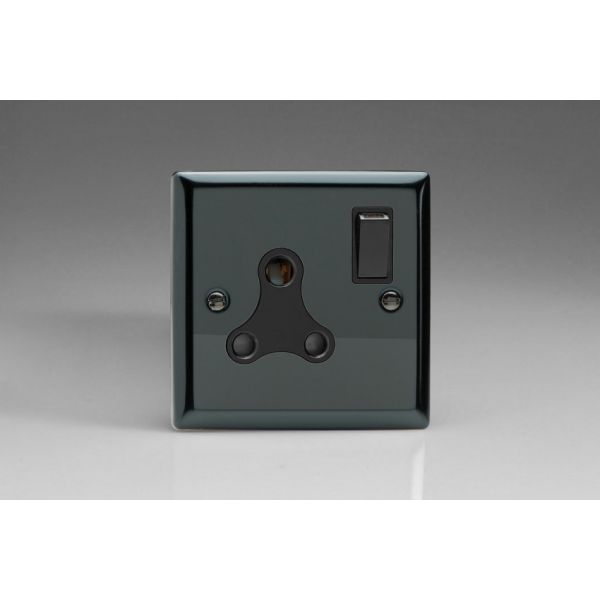

XIRP15AB Varilight 1 Gang 15 Amp Black Switched Round Pin Socket Classic Iridium Black (Gloss) Effect Finish with Black Socket and Switch
#XIRP15AB
GTIN: 5021575770889
£13.38
£11.15
XIRP15AB Varilight Single 15 Amp Switched Round Pin Socket on a Single Plate, Classic Iridium Black Effect Bevelled Edge Plate with Black Socket, Switch and Trim
✔ For use in lighting circuits in conjunction with wall switches
✔ Bevelled edge faceplate
✔ For use in lighting circuits in conjunction with wall switches
✔ Bevelled edge faceplate
Availability:
In stock
SKU
XIRP15AB
Varilight 1 Gang, Switched 15 Amp Round Pin Socket, on a Single Plate, for use in lighting circuits in conjunction with wall switches.
..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
This socket accepts British 15 Amp Round Pin plugs.
..................................................
These sockets are for use only with lighting circuits, where the socket is typically controlled from the main wall switch in the room. This enables sidelights, that are plugged in to the 15 Amp sockets in the room, to be switched on at the same time when entering the room. These sockets accept the 15 amp round pin plugs.
..................................................
Limitations
This Socket is not waterproof.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
This socket accepts British 15 Amp Round Pin plugs.
..................................................
These sockets are for use only with lighting circuits, where the socket is typically controlled from the main wall switch in the room. This enables sidelights, that are plugged in to the 15 Amp sockets in the room, to be switched on at the same time when entering the room. These sockets accept the 15 amp round pin plugs.
..................................................
Limitations
This Socket is not waterproof.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
| Plate Finish | Iridium Black |
|---|---|
| Socket Type | Round Pin |
| Sockets | 1 Gang Socket |
| Socket Insert Colour | Black |
Write Your Own Review
Product Features
✔ For use in lighting circuits in conjunction with wall switches
✔ Bevelled edge faceplate
..................................................
Range: Classic
Finish: Iridium Black Effect
Product Category: Round Pin Socket
Insert/Knob Colour: Black Insert
Dimensions: 91x91x25mm
Faceplate Depth: 8mm
Product Weight: 190g
Fixing Centres: 60.3mm
Recommended Back Box Depth: 25mm
Operating Voltage: 220/250V AC
Maximum Load Rating: 15A
Maximum Current Rating: 15A
Terminal (Live) Diameter: 5.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 5.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 5.5mm; Capacity: 4 x 2.5mm²
..................................................
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 546
