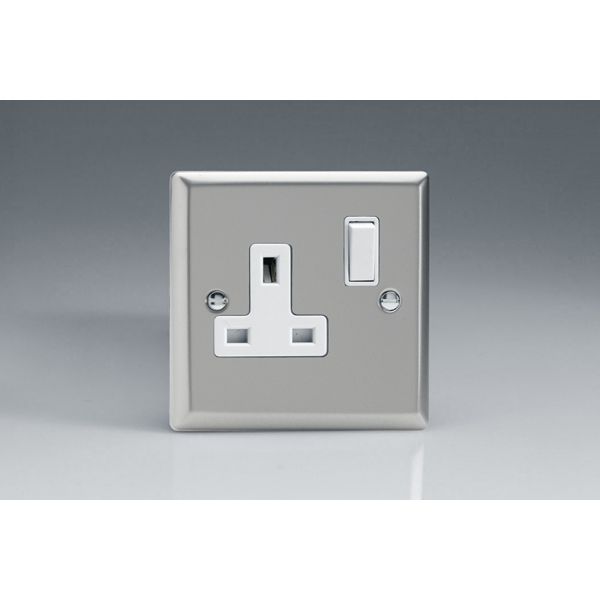

XN4W Varilight 1 Gang 13 Amp Double Pole Switched Socket Classic Satin Chrome Effect Finish with White Socket and White Switch
#XN4W
GTIN: 5021575800326
£5.64
£4.70
XN4W Varilight Single 13 Amp Switched Socket on a Single Plate, Classic Satin Chrome Effect Bevelled Edge Plate, White Socket and White Switch
✔ Double pole switching for safer operation
✔ Bevelled edge faceplate
✔ Double pole switching for safer operation
✔ Bevelled edge faceplate
Availability:
In stock
SKU
XN4W
Varilight 1 Gang, 13 Amp Double Pole Switched Socket, on a Single Plate.
..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
The rocker switch on the Socket is rectangular with a central fulcrum, press the bottom of the rocker switch to turn on, and the top of the rocker switch to turn off, an audible click will occur when turning on/off the switch, the socket accepts British plugs.
..................................................
Limitations
This Socket is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
..................................................
VARILIGHT Sockets have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight Socket, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct Sockets for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................
Appearance, Function and Applications
The rocker switch on the Socket is rectangular with a central fulcrum, press the bottom of the rocker switch to turn on, and the top of the rocker switch to turn off, an audible click will occur when turning on/off the switch, the socket accepts British plugs.
..................................................
Limitations
This Socket is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
Cleaning
This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................
Product Instructions & Manuals
- Wiring Accessories PDF
| Plate Finish | Satin Chrome |
|---|---|
| Socket Type | 13 Amp - Mains Socket |
| Sockets | 1 Gang Socket |
| Socket Insert Colour | White |
Write Your Own Review
Product Features
✔ Double pole switching for safer operation
✔ Bevelled edge faceplate
..................................................
Range: Classic
Finish: Satin Chrome Effect
Product Category: 13A Socket
Insert/Knob Colour: White Inserts
Dimensions: 91x91x32mm
Faceplate Depth: 8mm
Product Weight: 160g
Fixing Centres: 60.3mm
Recommended Back Box Depth: 25mm
Operating Voltage: 220/250V AC
Maximum Load Rating: 13A
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
..................................................
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-2
