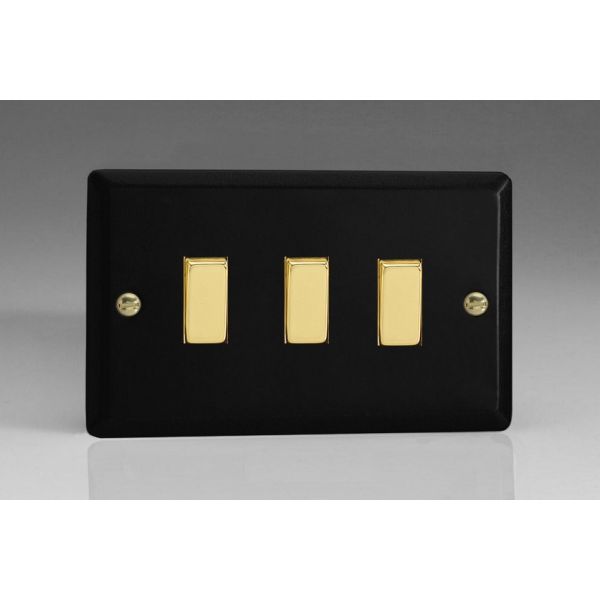

XY73V.MB Varilight 3 Gang Comprising of 3 Intermediate (3 Way) 10 Amp Switch Vogue Matt Black Effect Finish With Polished Brass Switches On a Double Plate

Varilight 3 Gang, 3 way (intermediate) 10 Amp Switch, on a Double Plate, for all lighting types.

..................................................
VARILIGHT switches have an industry-wide reputation for exceptional performance, long life and innovation at attractive prices.
..................................................
The Varilight switch, like all our products, is designed to meet the latest European Safety Legislation.
..................................................
It is important to select the correct switch for your application, so please read the following information carefully, if need be look at PDF manuals, and if you are still unsure, then contact us.
..................................................

Appearance, Function and Applications

The rocker switch are rectangular with a central fulcrum, press the bottom of the rocker switch to turn on, and the top of the rocker switch to turn off, an audible click will occur when turning on/off the switch.
..................................................
Varilight rocker switches are suitable for controlling mains and low voltage lighting, halogen, incandescent GLS, LEDs and any other lighting. 3 way switches are to be used where the lighting circuit is controlled by three switches (or 1 dimmer and 2 switches) often called a 3 way or intermediate circuit, this switch has four terminals on the back, enabling you to link all three switches, of the circuit, together. Make sure, on the 3 way circuit, that the other two switches are 2 way (or 1 dimmer and 1 switch). For example, imagine a room with 3 sets of doors leading in to that room and one ceiling light circuit. The switches beside two doorways are 2 way switches, beside the third doorway, the switch would be a 3 way. Another scenario: imagine the same room with 3 doorways and ceiling light circuit. Beside one doorway is a 2 way switch, another doorway has a dimmer switch, and the third doorway has a 3 way switch.
..................................................

Limitations

This switch is not waterproof. If this product is needed for external use please buy the following items IP66 Wall Box and if needed, a Spacer.
..................................................
If you would prefer a dimmer instead, or need one to use in conjunction with this product, then choose one of the following dimmers: if dimming LEDs choose either the V-Pro, or V-Com Dimmer Series. If dimming mains and Low Voltage then choose V-Plus Dimmer Series, and if only dimming incandescent lighting, then choose V-Dim.
..................................................

Cleaning

This product can be easily cleaned with a soft dry micro-fibre cloth. Never apply masking tape or other similar tape to the product. Avoid the use of any cleaning chemicals and always use a Gasket on freshly plastered, painted or damp walls as the plates may tarnish. (Plaster can take up to 6 months to dry out). A Gasket can be made from the packaging the product comes in, or a plastic bag can be cut to stop the plate touching the plaster. Unfortunately, if these Instructions are not followed, and the plate is damaged, it will void the product warranty.
..................................................

Product Instructions & Manuals


- Wiring Accessories PDF
